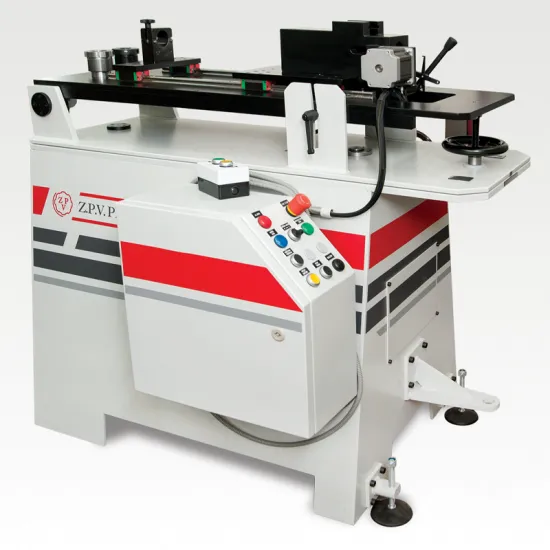

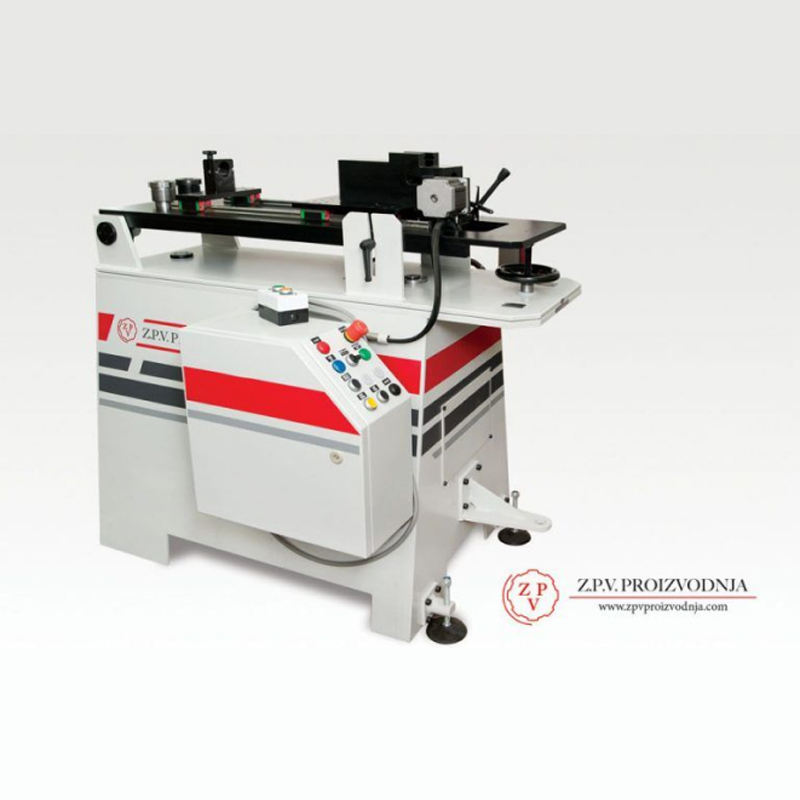

M2 Improved Universal Ballistic Test Barrel Receiver

Article code:
M2 Improved Universal Ballistic Test Barrel Receiver

M2 Improved receiver is designed to accommodate anything from a 5,56 mm up to a 12,7 mm caliber. For measurement of gas pressure curves, interior ballistic times, projectile velocities and for ammunition precision tests. Weight of the machine is ~600kg.

Categories: Ballistic test equipment

Description

The main advantages of the M2 Improved receivers are:

  • Remote trigger firing device
  • Interchangeable firing pin
  • Testing according to NATO (EPVAT), CIP, SAAMI and other standards possible
  • Barrel change system for fast changing of barrels for different calibers
  • Firing a shot is only possible when breech is correctly lock.


Technical parameters:

High: 1300 mm
Length: 1350 mm
Width: 960 mm
Total mass: 470 kg
Elevation/Azimuth range: ± 5°/± 5°
Power supply: 220 V
